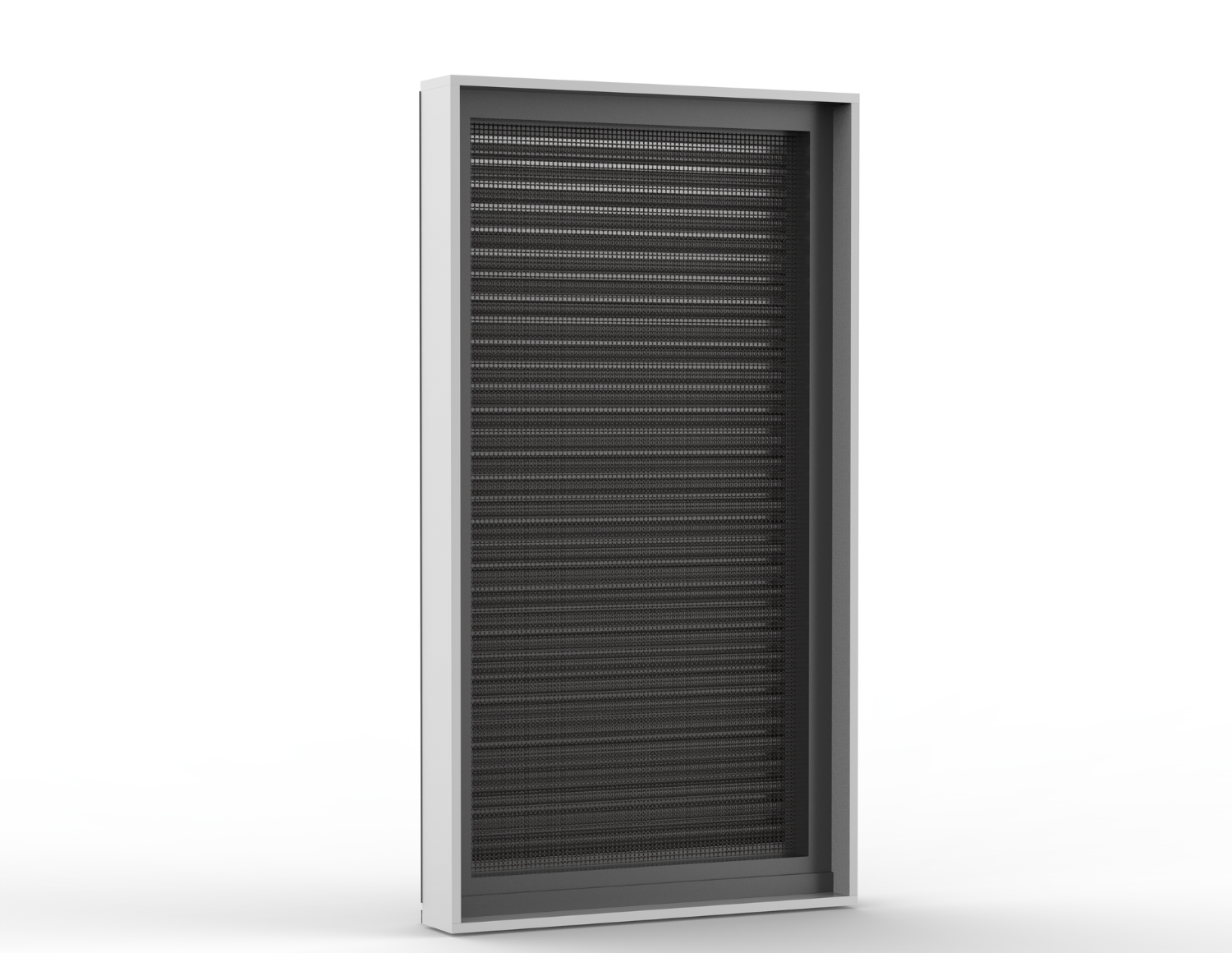

GL Commercial Series Aluminium Louvre Windows

Offers controlled airflow, suitable for storage rooms, plant rooms, and modern office spaces.

STRUCTURAL SPECIFICATIONS

Frame Depth:

Wind Load:

Ultimate Strength:

100/150mm

PERFORMANCE

Sound Insulation:

Water Resistance:

U Value:

Air lnfiltration:

SHGC Range:

100/150mm

THERMAL & ENERGY EFFICIENCY

Thermal Break:

Non- thermal break

DESIGN OPTIONS

Variants:

Flyscreen:

N/A

Black Stainless Steel Mesh

HARDWARE & ACCESSORIES

Hardware:

N/A

Premium Material We Use

The Premium Material we Use highlights Green Window’s commitment to high-quality, sustainable, and durable materials for superior performance and longevity. highlights Green Window’s commitment to high-quality, sustainable, and durable materials for superior performance and longevity.

Commercial Grade Aluminium Extrusions

Material Thickness From 1.8 mm

Aluminum Alloy -6063-T5

Double Glazed Unit

AS1288/ AS2208/ AS4666

Argon Gas Filled

Toughened Glass

Black Spacer

Dulux/ Interpon Powder Coating

Up To 20 Years Powder Coating Warranty

Widely Color Choices

Color Easily Match To Other Building Finish Materials

Flyscreen Mesh/Secruity Screen Mesh

316 Grade Stainless Steel

High Transparency

Heavy Duty

Magnetic Adsorption Design

Stainless Steel Track

316 Grade Stainless Steel

Heavy Duty

Easy To Maintain

Nylon Heavy Duty Runner

Quiet And Smooth Sliding

Heavier doors of up to 300kg

Polymer tyres and stainless bearings ensure reliability

Seamless indoor-outdoor transition with 37mm height

The Most Vital Aspect of Correct Function – is Correct Installation.

It is recommended that the manufacturer’s specification is always followed as improper installation can lead to air infiltration, moisture and poor overall performance.

Rylock has detailed Typical Building-In Details for four common wall types to assist in the best practice installation of product:

— Linea Board
— Hebel PowerPanel
— Brick Veneer
— Double Brick

Download PDF coming soon

Explore More from This Series

Windows

Doors

GL Commercial Series Awing Double Glazed Windows

View Detail

Frame Depth:

100/150mm

Wind Load:

Ultimate Strength:

3300Pa

Sound Insulation:

Above 34DB

Water Resistance:

300Pa

U Value:

4.8-5.3

Air lnfiltration:

75Pa

SHGC Range:

0.25-0.45

Thermal Break:

Non- thermal break

Variants:

N/A

Flyscreen:

Black Stainless Steel Mesh

Sound Insulation:

Above 34DB

Hardware:

1. AS-03 Chainwinderr

2. 5001AA Twin Chainwinder

3. Doric DS1 Chainwinder

4. Doric DN450 Twin Chainwinder Satin

GL Commercial Series Bifold Double Glazed Windows

View Detail

Frame Depth:

100mm

Wind Load:

Ultimate Strength:

+3000Pa/-2500Pa

Sound Insulation:

Above 34DB

Water Resistance:

150Pa

U Value:

4.4-5.1

Air lnfiltration:

75Pa

SHGC Range:

0.3-0.55

Thermal Break:

Non- thermal break

Variants:

N/A

Flyscreen:

N/A

Sound Insulation:

Above 34DB

Hardware:

Bi-Fold Hardware Set

GL Commercial Series Double Hung Double Glazed Windows

View Detail

Frame Depth:

100/150mm

Wind Load:

Ultimate Strength:

3000Pa

Sound Insulation:

Above 35DB

Water Resistance:

200Pa

U Value:

3.6-6.5

Air lnfiltration:

75Pa

SHGC Range:

0.23-0.67

Thermal Break:

Non- thermal break

Variants:

Standard/Aneeta Sashless/AustView Sashless

Flyscreen:

Black Stainless Steel Mesh

Sound Insulation:

Above 35DB

Hardware:

Double Hung Lock Set

GL Commercial Series Sliding Double Glazed Windows

View Detail

Frame Depth:

100mm

Wind Load:

Ultimate Strength:

3300Pa

Sound Insulation:

30-33DB

Water Resistance:

300Pa

U Value:

3.8-4.5

Air lnfiltration:

75Pa

SHGC Range:

0.18-0.52

Thermal Break:

Non- thermal break

Variants:

N/A

Flyscreen:

Black Stainless Steel Mesh

Sound Insulation:

30-33DB

Hardware:

1. TLS18S Mortice Sliding Window Lock

2. Doric DN560 Mortice Sliding Window Lock

GL Commercial Series Fixed Double Glazed Windows

View Detail

Frame Depth:

100/150/250mm

Wind Load:

Ultimate Strength:

3300Pa

Sound Insulation:

N/A

Water Resistance:

300Pa

U Value:

2.9-3.7

Air lnfiltration:

75Pa

SHGC Range:

0.34-0.66

Thermal Break:

Non- thermal break

Variants:

N/A

Flyscreen:

N/A

Sound Insulation:

N/A

Hardware:

N/A

GL Commercial Series Automatic Awning Double Glazed Windows

View Detail

Frame Depth:

100/150mm

Wind Load:

Ultimate Strength:

Sound Insulation:

Water Resistance:

U Value:

Air lnfiltration:

SHGC Range:

Thermal Break:

Non- thermal break

Variants:

N/A

Flyscreen:

Black Stainless Steel Mesh

Sound Insulation:

Hardware:

1. CH-XDTL3-TW416 Auto Mechanism Awning

2. CH-XDTL3-TW1200 Twin Auto Mechanism Awning

GL Commercial Series Hand Cranking Casement Double Glazed Windows

View Detail

Frame Depth:

100/150mm

Wind Load:

Ultimate Strength:

3300Pa

Sound Insulation:

Above 33DB

Water Resistance:

300Pa

U Value:

4.8-5.3

Air lnfiltration:

75Pa

SHGC Range:

0.25-0.45

Thermal Break:

Non- thermal break

Variants:

Outward

Flyscreen:

Black Stainless Steel Mesh

Sound Insulation:

Above 33DB

Hardware:

APT Chainwinder

GL Commercial Series Glass Louvre Single Glazed Windows

View Detail

Frame Depth:

100/150mm

Wind Load:

Ultimate Strength:

2000Pa

Sound Insulation:

N/A

Water Resistance:

200Pa

U Value:

5.0-6.2

Air lnfiltration:

N/A

SHGC Range:

0.35-0.53

Thermal Break:

Non- thermal break

Variants:

Standard/Breezway

Flyscreen:

Black Stainless Steel Mesh

Sound Insulation:

N/A

Hardware:

Glass Louvre Lock Set

GL Commercial Series Hinged Double Glazed Door

View Detail

Frame Depth:

100/150

Wind Load:

Ultimate Strength:

3300Pa

Sound Insulation:

Above 34DB

Water Resistance:

300Pa

U Value:

3.7-4.3

Air lnfiltration:

75Pa

SHGC Range:

0.28-0.52

Thermal Break:

Non- thermal break

Variants:

Inward/Outward

Flyscreen:

N/A

Sound Insulation:

Above 34DB

Hardware:

1. Legge 995 Narrow Style Multi Function Lock Set

2. Dorma SB2312 Narrow Style Multi Function Lock Set

3. Doric DS1295 Two Point Dead Lock & DS1600 Handle

4. Lockwood LW5782SS Selector

5. Doric DN7300&DN995 Commercial Locking

6. Auslock S31B Slim Smart

7. LOCKWOOD CTX6782 Auto Lock

GL Commercial Series Door Jamb Only

View Detail

Frame Depth:

100/150mm

Wind Load:

N/A

Ultimate Strength:

N/A

Sound Insulation:

N/A

Water Resistance:

N/A

U Value:

N/A

Air lnfiltration:

N/A

SHGC Range:

N/A

Thermal Break:

Non- thermal break

Variants:

Standard

Flyscreen:

Doorstoper for 40mm Panel

Sound Insulation:

N/A

Hardware:

N/A

GL Commercial Series Sliding Double Glazed Door

View Detail

Frame Depth:

100-214

Wind Load:

Ultimate Strength:

3300Pa

Sound Insulation:

Above 34DB

Water Resistance:

300Pa

U Value:

3.2-3.9

Air lnfiltration:

75Pa

SHGC Range:

0.31-0.59

Thermal Break:

Non- thermal break

Variants:

2-8 panelsOptional flyscreen

Flyscreen:

Heavy Duty

Sound Insulation:

Above 34DB

Hardware:

1. B152 Timbarra Sliding Patio Door Lock Set

2. Doric DS3130 Timbarra Sliding Patio Door Lock Set

3. Doric DS575 Flush Pull Handle & DN1290/30 Lock Body
4. GL 600/400mm Square Set D Pull Handle & DN1290/30 Lock Body

5. KABA 951 Mortice Sliding Door Lock & KABA SB312 Lever Handles

GL Commercial Series Bifold Double Glazed Door

View Detail

Frame Depth:

100

Wind Load:

Ultimate Strength:

+3000Pa/-2500Pa

Sound Insulation:

Above 34DB

Water Resistance:

150Pa

U Value:

3.7-4.3

Air lnfiltration:

75Pa

SHGC Range:

0.28-0.52

Thermal Break:

Non- thermal break

Variants:

N/A

Flyscreen:

N/A

Sound Insulation:

Above 34DB

Hardware:

AS7041-04 Bi-Fold Hardware Set

GL Commercial Series Pivot Door

View Detail

Frame Depth:

100/150

Wind Load:

Ultimate Strength:

Sound Insulation:

Water Resistance:

U Value:

Air lnfiltration:

SHGC Range:

Thermal Break:

Non- thermal break

Variants:

N/A

Flyscreen:

N/A

Sound Insulation:

Hardware:

GMT Pivot Door Lock
